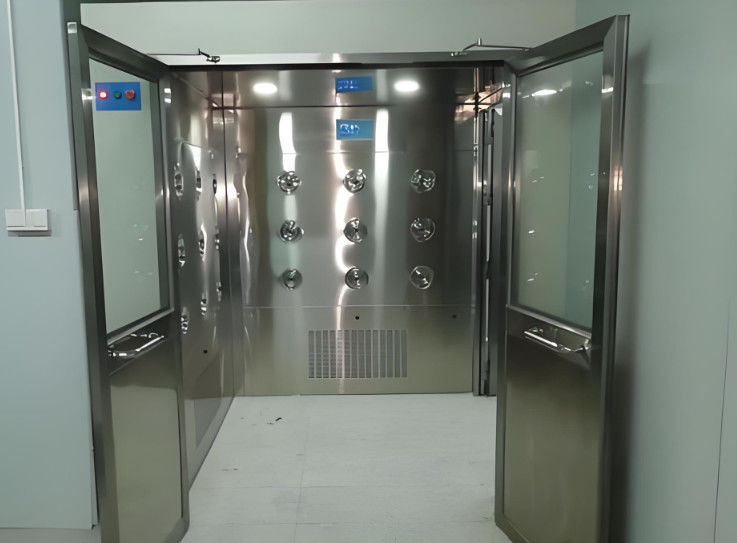

Customized Cargo Air Shower Semiconductor Pharmaceutical Medical Cosmetic Factory

Goods Shower Chamber‌

The goods shower chamber is a critical equipment in clean environments for cargo purification, employing multi-stage purification mechanisms to ensure surface dust removal and contamination control before goods enter clean zones. Below is a systematic breakdown of its core functionalities:

I. Core Functions and Structure

1. ‌Dual Purification Mechanism‌

   • Electronically interlocked dual doors create a sealed airlock, effectively blocking external un-purified air from entering clean zones
   • Equipped with primary + HEPA filters, achieving 99.99% capture efficiency for 0.3μm particles

2. ‌Dynamic Purification System‌

   • Uses 24–36 adjustable-angle stainless steel nozzles to deliver high-velocity (22–25 m/s) clean airflow for multi-directional particle removal from cargo surfaces
   • Recirculating airflow system re-filters dust-laden air, reducing energy consumption by 15%–20% compared to traditional designs

II. 2025 Technical Standard Upgrades

1. ‌Enhanced Performance Requirements‌

   • Airflow velocity standards increased to 22–25 m/s (previously 18–22 m/s); conveyor-type chambers must support 5-ton loads
   • Mandatory upgrade to 304 stainless steel or antibacterial composite materials for inner walls to eliminate corrosion risks from traditional color-coated panels

2. ‌Smart Monitoring System‌

   • Integrated pressure differential sensors for real-time filter status monitoring, with automatic alarms for threshold breaches
   • RFID cargo identification modules enable automated operation, optimized via PLC control systems for energy efficiency

III. Typical Application Scenarios

IV. Operational Guidelines

1. ‌Pre-disinfection Procedures‌
   • Wipe cargo surfaces with 0.5% peracetic acid; UV irradiation in transfer windows ≥15 minutes
2. ‌Dynamic Management‌
   • Maintain equipment logs for fan runtime and filter replacement cycles

This systematic design enables goods shower chambers to maintain ISO 14644 Class 5 standards while accommodating industry-specific requirements. Key selection criteria include cargo dimensions (200mm safety clearance recommended), door types (sliding/rapid roll-up doors), and industry certifications
